Intake manifold wide flange, fits on C50, C70, C90 NT

Product description

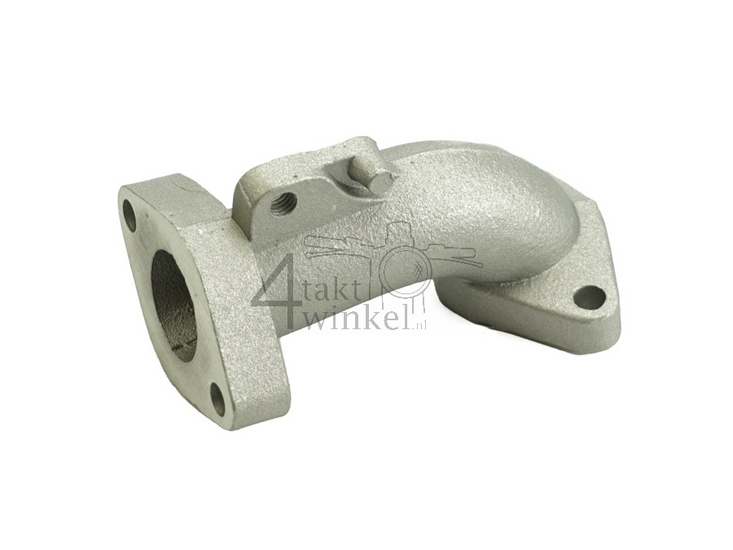

This cast aluminum intake manifold with a wide flange is designed for C90 NT models and is also highly suitable for C50 and C70 mopeds.

• Material: cast aluminum
• Inner diameter: approximately 22 mm
• Carburetor flange hole spacing (center-to-center): 48 mm
• Cylinder head flange hole spacing (center-to-center): 45 mm
• Features an angled/right-angle bend for correct positioning of the float bowl and air filter under the frame
• Suitable for mounting a C90 NT carburetor on a C50 or C70 as a replacement for the downdraft carburetor

• Honda C50
• Honda C70
• Honda C90 NT
• Honda C90 Cub 12V
• Honda C90M Cub Electric Start 12V
• Honda Super Cub 90 Deluxe
• Honda Super Cub 90 Custom
• Honda C90CM Super Cub

This part provides an exact OEM match for standard factory assembly on specific Honda C90 Cub models (1982 - 2002) with region codes G, CSW, and SSW, and Super Cub 90 Deluxe or Custom models (HA02 series, 1986 - 2008) with region code JDM.
